Machine tool bearings

myonic can also do big!

myonic products are used in rotary table systems and rotary axes as well as in linear drive units.
myonic bearings are manufactured exclusively in Germany. Only ultra-precision machine tools are used in our fully air-conditioned production facility.

Combined with modern processes, rolling element bearings of the highest quality are produced.
Our development engineers and test benches are located in the immediate vicinity of production. Short distances increase flexibility and the speed required to quickly implement perfect solutions for our customers.

Our focus is our customers!

Numerous renowned manufacturers of machine tools worldwide trust in the quality of myonic products. In close cooperation with our customers, we continuously solve even highly complex application cases. By being close to our customers, we understand their applications and can translate this experience into ever-improving products.

GF Machining Solutions is the world’s leading provider of machines, automation solutions and services to the tool and mold making industry and to manufacturers of precision components. Based in Switzerland and globally active with 50 sites worldwide, we are a premium brand and at your service with over 3100 employees.

www.gfms.com

KESSLER is the world leading, independent supplier for complex direct drive solutions.
With over 90 years of expertise, KESSLER is continuously developing further and optimizing its products.

www.kessler-group.biz

Production facility in Leutkirch, Germany

More service

We support you comprehensively – no ifs or buts!
From the first sketch, through design and calculation, construction, prototype construction, assembly to series production. In addition to technical expertise, we offer a wide range of logistics solutions. This means you always have the optimal product in the right place at the right time.

The machine tool industry needs powerful system partners in order to continuously increase its own competitiveness. The necessary short development times require maximum flexibility and innovative approaches to solutions.



Mitarbeiter Werkzeugmaschinenlager

The next generation

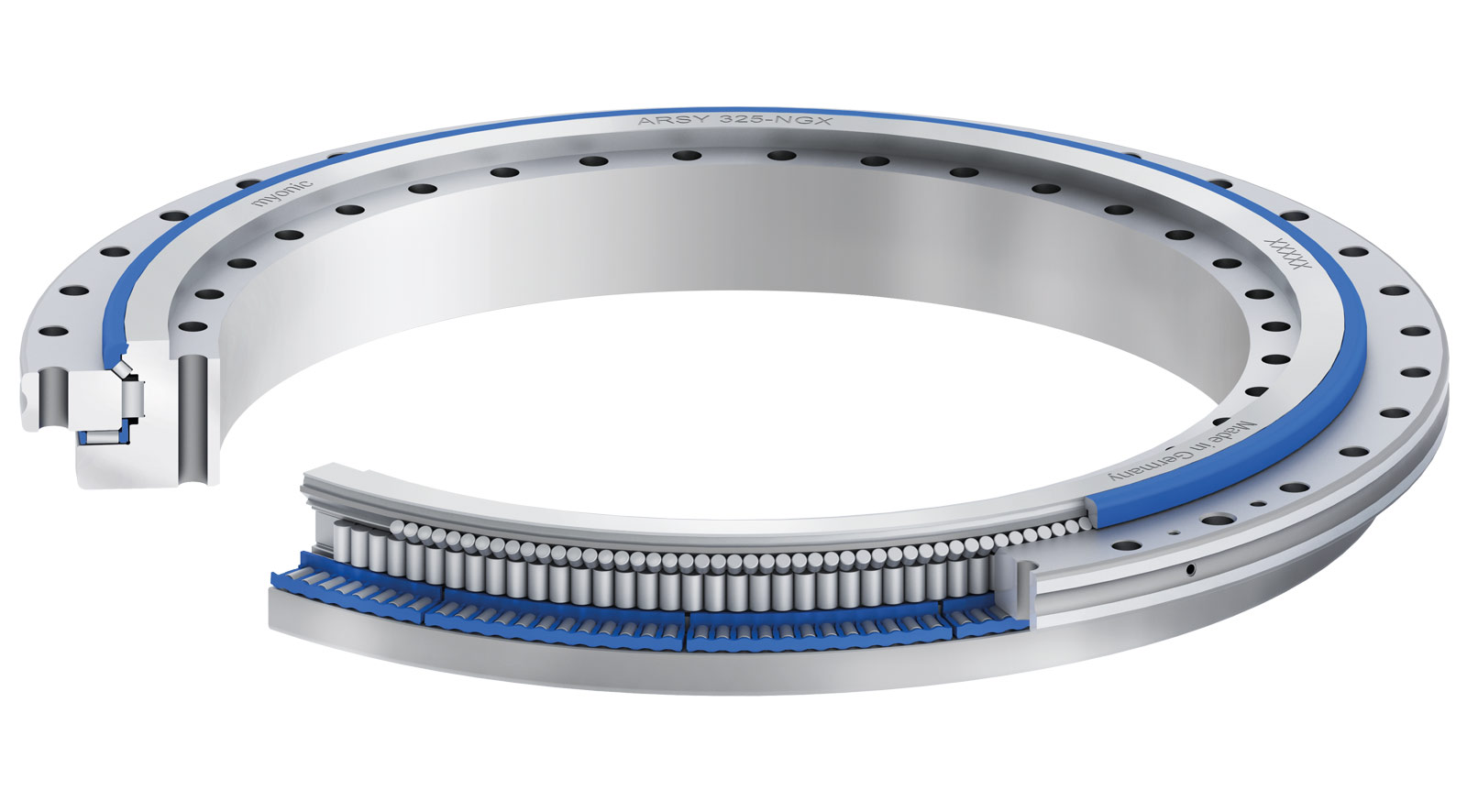

The AXRY-NGX series has been consistently developed for maximum rigidity. More rigidity from the given installation space is not possible!
The optimised ring geometry of the NGX minimises the influences of the surrounding construction and reduces the number of variants. The proven grease reservoirs from the EX series have been integrated here.

We developed our new AXRY-NGS series for maximum speed combined with high rigidity. The bearing is therefore ideal for milling/turning applications and innovative machine concepts. Friction torque and temperatures can be reduced to a minimum. Sensors can be mounted directly under the raceway to monitor the bearing. Of course, the next-generation bearings are compatible with the previous series.

NGX – maximum rigidity

  • up to 25% increase in rigidity

  • more solid bearing rings

  • lower ring deformation

  • increased life time

NGS – maximum speed

  • optimised kinematics

  • higher duty-cycle

  • low temperature difference between inner and outer ring

  • constantly low friction torque

Available series

Axial-radial bearings / Rotary table bearing

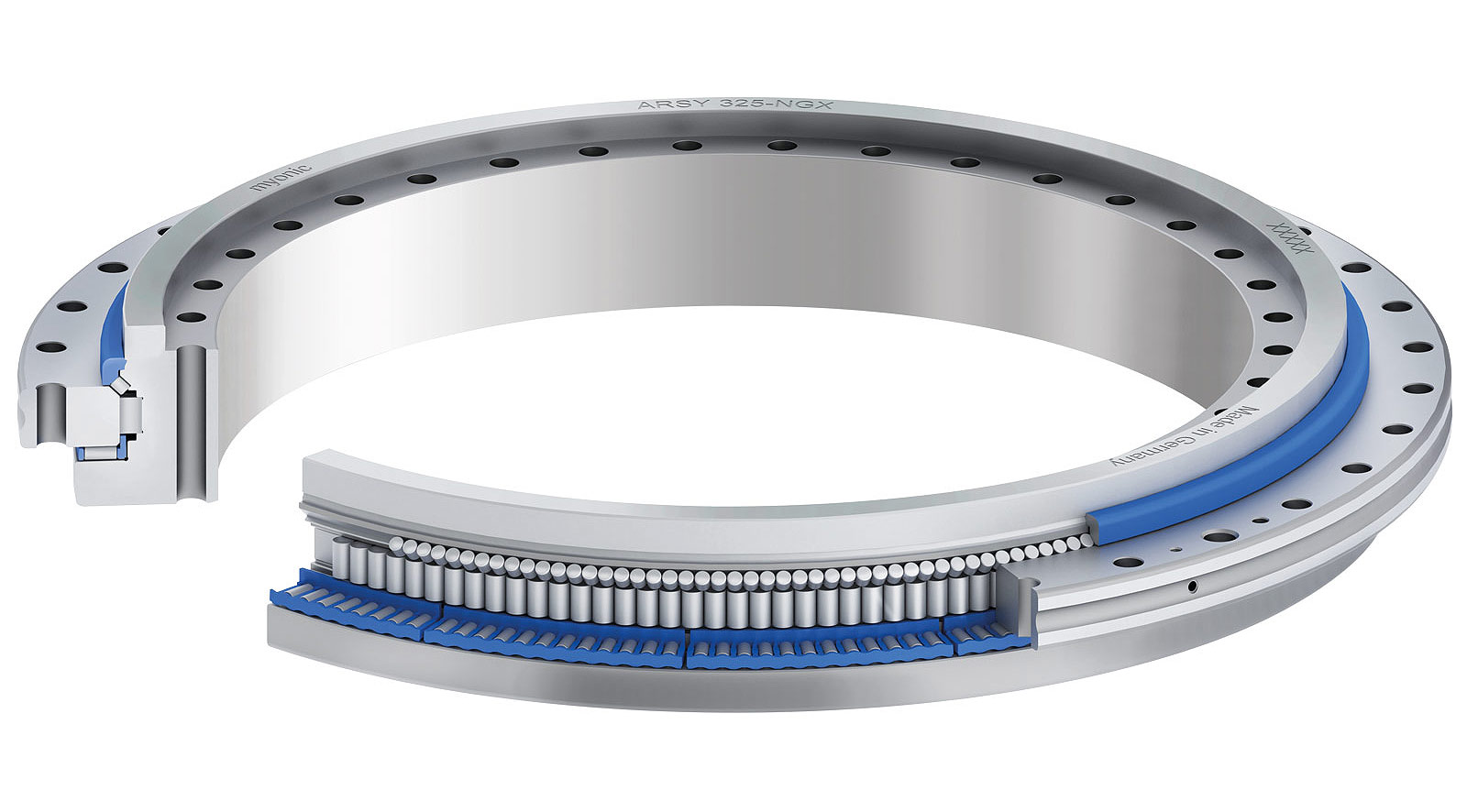

AXRY-NGX

Next-Generation Axial-Radial Bearings, maximum rigidity

AXRY-NGX bearings are double direction, screw-on precision bearing units ready for installation and intended for highly rigid applications, for example for rotary tables or milling heads.

The bearing absorbs axial and radial forces and tilting moments backlash-free.

AXRY NGX bearings offer optimum speed, rigidity and life time in the available space. The bearings are greased as standard with a special grease according to DIN 51825-KPH-C1N-30.

Other greases or ungreased bearings are available on request.

Further information can be found on our product website

Technical basics NGX

Technical details NGX

AXRY-NGS

Next-Generation Axial-Radial Bearings, maximum speed

AXRY-NGS bearings are double-direction, screw-on precision bearing units ready for installation and intended for highly rigid and at the same time high-speed applications, for example for Mill-turn tables or vertical lathes.

AXRY-NGS bearings are double-direction, screw-on precision bearing units ready for installation and intended for highly rigid and at the same time high-speed applications, for example for Mill-turn tables or vertical lathes. The bearing absorbs axial and radial forces and tilting moments backlash-free.

Further information can be found on our product website

Technical basics NGS

Technical details NGS

AXRY-EX

Axial-Radial Bearings for rigid applications

myonic AXRY-EX axial-radial bearings are double-direction, screw-on precision bearing units ready for installation and intended for rigid applications, for example for rotary tables or milling heads.
The bearing absorbs axial and radial forces on both sides as well as tilting moments backlash-free. AXRY-EX bearings are suitable for lifetime grease lubrication, and are designed for maximum rigidity.

The friction torques of the bearing have been optimised, and the starting torque and running torque are almost identical.
In this way, myonic-AXRY-EX bearings fulfil all the requirements for modern highly dynamic and direct-driven machine axes. AXRY-EX bearings will be replaced by the new generation AXRY-NGX in the future. For high speed applications we recommend AXRY-NGS bearings.

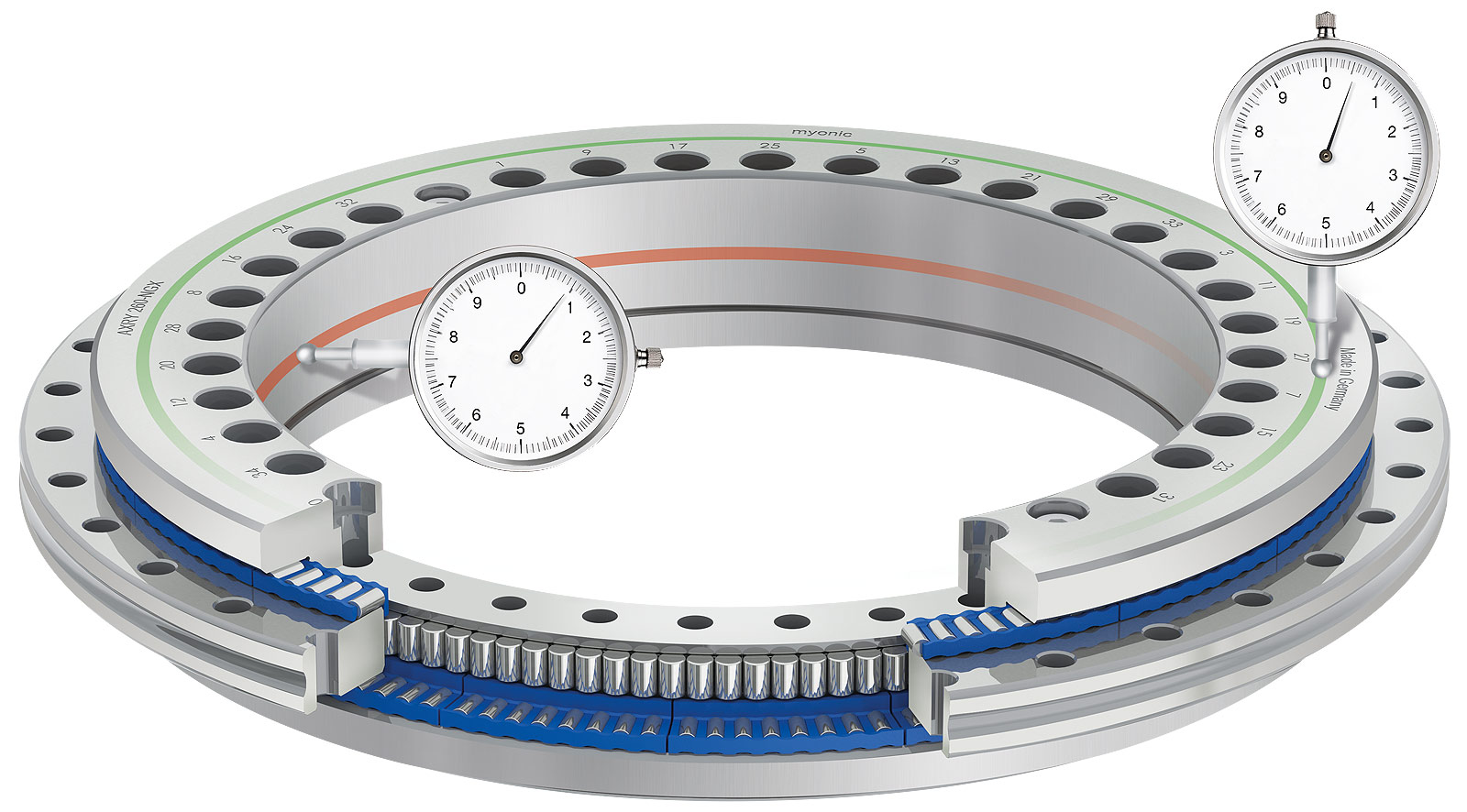

Accuracy / designs

For the EX bearings, all variations, such as limitation of the axial and radial runout, height tolerances H1/H2 and the design with supported L-section ring AC are available without limitations.

Measuring system

AXRY-EX bearings can be equipped with inductive angle measurement systems. These are available in incremental and absolute design (as single or multi-head systems in very different accuracies). Mounting this system onto the bearing facilitates maximum accuracies through the exploitation of the precision on the bearing ring with minimal concentricity errors to the shaft (table). See more in the chapter Measuring systems.

Further information can be found on our product website

Technical details AXRY-EX

AXRY-NGX-MI/MA
AXRY-NGS-MA
AXRY-EX-MI/MA

Axial-Radial Bearings with angle measuring systems

AXRY bearings can be equipped with inductive angle measuring systems. These are available in incremental or absolute versions, as single or multi-head systems in various accuracies.

By mounting the measuring ring directly on the bearing ring, concentricity errors with respect to the shaft (table) are minimised and thus highest accuracies of a few angular seconds are realised.

myonic only supplies the “mechanical part”, i.e. the bearing including the mounted measuring ring and thread in the outer ring for axial or radial scanning head mounting.

Further information can be found on our product website

Angular contact roller bearing

AXDR

Double row angular contact roller bearings for rigid applications

AXDR Double row angular contact roller bearings are double-direction, screw-on precision bearing units ready for installation for applications with high rigidity requirements such as rotary tables or milling heads.

The bearing absorbs both axial and radial torques and tilting moments backlash-free.
AXDR bearings feature two raceways with tilted cylindrical rollers laid out in an O-arrangement. The pressure angle of 45° is ideal in order to absorb all the forces occurring in machine tools.

Bearing structure

AXDR bearings consist of 2 rings:
■ Inner ring
■ Outer ring
The rollers are introduced via special axial filling openings in the bearing; these are sealed with a plug.
In contrast to radial filling holes, the raceway is not interrupted. This leads to accurate and smooth running of the bearings.
AXDR are filled with full complement (bearing type VX).

Applications

Due to the high design strength,
AXDR bearings are not sensitive to the surrounding construction; the bearings can be installed more easily.
AXDR Double row angular contact roller bearings are frequently used as an alternative to axial-radial bearings in rotary axes and swivel axes.

Further information can be found on our product website

Cross roller bearings

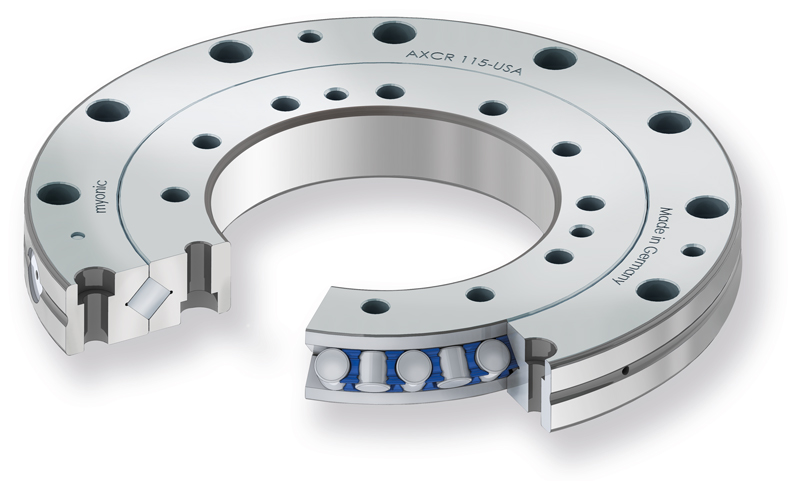

AXCR

Cross roller bearings for compact designs

AXCR cross roller bearings consist of an inner and outer ring, cylindrical rollers and spacers. Due to their compact size, these bearing types are frequently used as swivel bearings.

Typical applications are milling heads, swivel axes or robots, but also industrial applications with increased accuracy requirements.
In cross roller bearings, the cylindrical rollers are arranged cross-wise in a raceway offset by 90° so that loads and torques can be evenly absorbed in all directions.
Cross roller bearings offer relatively high axial and radial rigidities and tilting rigidity in highly compact constructions.

Further information can be found on our product website

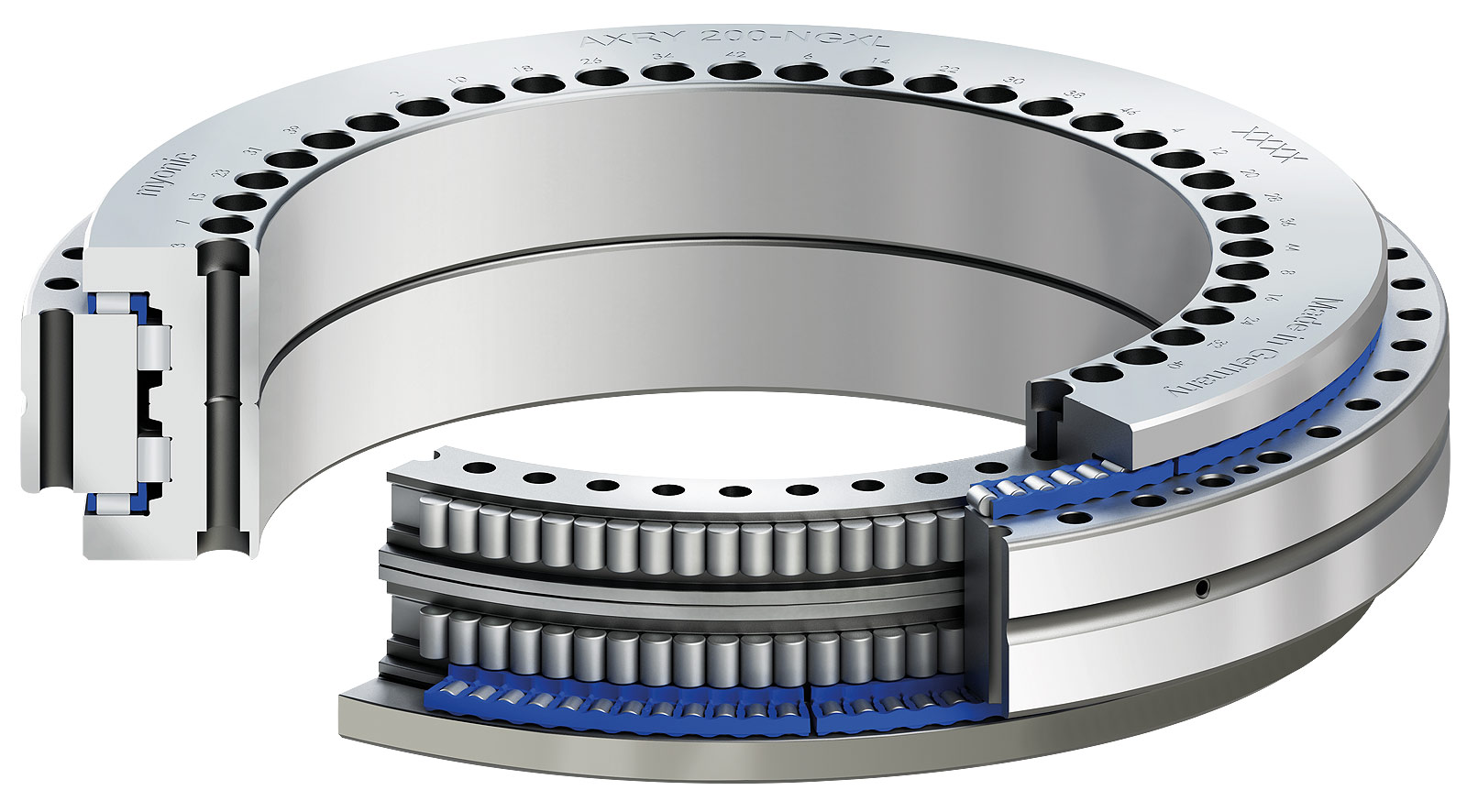

Floating bearings and special bearings

XC

Floating bearings and special bearings

For long axes or axes with high applications of pressure through tilting moments, a counter bearing can substantially increase the performance capacity.

The bearings are preloaded via the radial part and therefore run backlash-free, but can balance out length expansions.

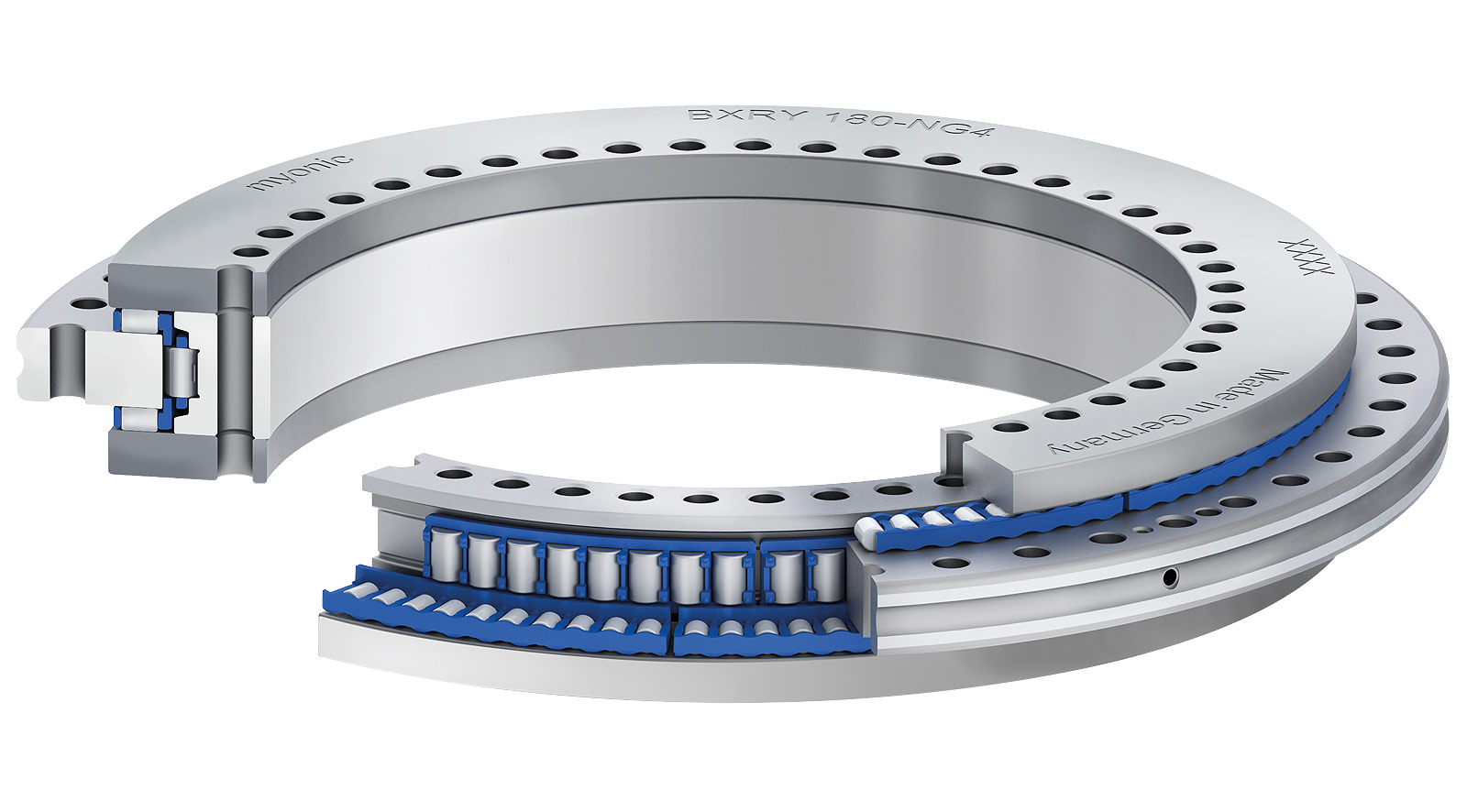

Integration

Further functions can be integrated into these bearing types:
■ Fit seats for additional parts such as toothed wheels or measuring flanges
■ Counter faces for shaft sealing rings
■ Seals
■ Toothings

Further information can be found on our product website

myonic machine tool bearings – Ultra Precision Made by myonic

myonic Machine Tool Bearings – Ultra Precision made in Germany Produced by G-Punkt Studios / 2019

myonic bearings for precision rotary axes

Please feel free to download the current 8-page folder myonic bearings for precision rotary axes.

Format: PDF / file size: 5 MB
